SC-2030 Bogart solar charge controller

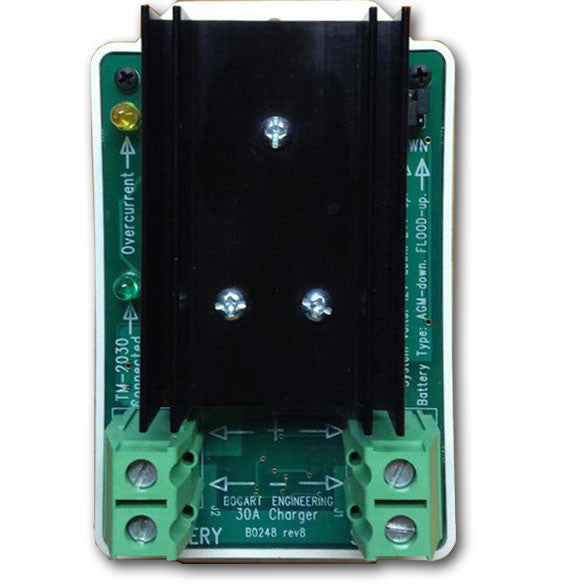

top view bogart sc-2030 charge controller
SC-2030 Charge Controller with Temperature Sensor
Bogart Engineering

SC-2030 Charge Controller with Temperature Sensor

Regular price $240.00 $0.00

Bogart Engineering's charge controller is the perfect match for the world famous TriMetric Battery Monitor.

  • Includes a 25-foot communication cable to connect to the TM-2030 TriMetric battery monitor
  • Includes a temperature sensor to allow the SC-2030 to respond to varying temperatures ensuring your battery is charging properly at all times

High efficiency charging at lower cost than MPPT chargers – but for good efficiency must be used only with 12V or 24V (about 17 or 35 Vpp-max power point) solar panels. Other type panels require a more expensive MPPT type charger for high efficiency.

● For 12 or 24 V battery systems: AGM, Gel or Liquid Electrolyte batteries

● Up to 31 amps maximum solar current. Charger will reduce output if panel current exceeds 31 amps

● Small size: 3 x 5-1/4 x 2-3/4 inches (7.6 X 13.3 X 7 cm)

● Easy programming for charging your batteries: In most cases entering all data is accomplished by selecting the appropriate charging profile for your type of batteries and then entering your battery capacity
